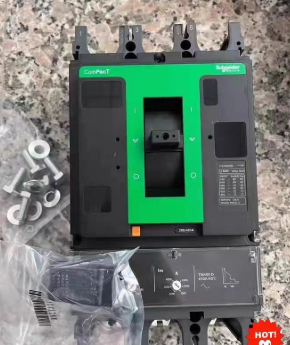

Schneider NSX400F molded case circuit breaker

The Schneider NSX400F molded case circuit breaker is a low-voltage power distribution protection electrical appliance with excellent performance and wide application. The following is a detailed introduction to it:

Model Meaning

- **NSX**: Product series name.

- **400**: The frame current rating is 400A, that is, the maximum long-term operating current that this circuit breaker can withstand is 400A.

- **F**: Breaking capacity level, which indicates that it has a specific breaking capacity level here.

Working Principle  YouTube：https://youtube.com/shorts/1NrzE_MB7I4

- **Thermal Tripping**: When there is an overload in the circuit, the current increases, and the thermal element of the thermal trip device heats up, causing the bimetallic strip to bend. As the overload time prolongs, the bending degree of the bimetallic strip increases. After reaching a certain degree, it pushes the free tripping mechanism to act, making the main contacts open and cutting off the circuit, thus achieving overload protection.

- **Magnetic Tripping**: When a short circuit occurs in the circuit, the short-circuit current generates a strong magnetic field, causing the armature of the overcurrent trip device to quickly attract, driving the free tripping mechanism to act. The main contacts open quickly, instantly cutting off the short-circuit current and protecting the circuit and equipment from the damage of the short-circuit current.

- **Under-Voltage Tripping**: When there is an under-voltage situation in the circuit, the armature of the under-voltage trip device is released, making the free tripping mechanism act and disconnecting the main circuit to prevent the equipment from operating under the under-voltage state.

 Main Parameters

- **Rated Operating Voltage**: Usually 690V, suitable for a variety of low-voltage power distribution systems.

- **Rated Insulation Voltage**: Generally 800V, ensuring that the insulation performance meets the requirements under normal operation and specified overvoltage conditions.

- **Rated Ultimate Short-Circuit Breaking Capacity Icu**: It has different values under different voltages. For example, it is 36kA at 380 - 415V, and it can reliably break the circuit in case of a short-circuit fault.

- **Mechanical Life and Electrical Life**: The mechanical life is generally 15,000 times, and the electrical life varies under different conditions. For example, it is 6,000 times at 440V and In, reflecting the durability and reliability of the product.

Application Scenarios

- **Industrial Field**: It is used in the low-voltage power distribution system of factories to provide overload, short-circuit and under-voltage protection for production equipment, motors, etc., ensuring the stable operation of industrial production.

- **Commercial Buildings**: In the low-voltage switchgear rooms of shopping malls, office buildings, etc., it serves as a protection electrical appliance for the power distribution lines, ensuring the safety and reliability of the power supply and preventing accidents caused by circuit failures.

- **Data Centers**: With high requirements for power supply reliability, the NSX400F can protect the power distribution lines and equipment to ensure the stable operation of the data center.

- **Water Treatment**: It is applied in the low-voltage power distribution system of water treatment plants to provide protection for equipment such as water pumps and mixers, ensuring the normal progress of the water treatment process.

The Schneider NSX400F molded case circuit breaker is a high-performance low-voltage power distribution protection device, suitable for complex power systems in industrial, commercial and civil fields. The following is a detailed description from aspects such as technical characteristics, function expansion, application scenarios and maintenance suggestions:

 I. Core Technical Parameters and Functional Characteristics

1. **Breaking Capacity and Voltage Compatibility**

   - **Rated Ultimate Short-Circuit Breaking Capacity (Icu)**: It can reach 36kA at a voltage of 380-415V, meeting the short-circuit protection requirements of medium and low-risk power distribution systems. For higher voltage scenarios (such as 690V), the Icu still remains at 10kA, ensuring reliable breaking under extreme working conditions.

   - **Current Limiting Performance**: Through the optimization of the arc extinguishing chamber design, it can limit the rise of the fault current in a very short time after a short circuit occurs, reducing the impact on downstream equipment.

2. **Intelligent Tripping Unit**

   - **Micrologic 2.3 Electronic Trip Unit**: It supports adjustable parameters for long-time delay (Ir) and short-time delay (Isd) protection. Among them, the Ir range is 160-400A (covering 80% of the frame current), and the Isd is fixed at 10 times Ir. The thermal memory function can record the current curve 20 minutes before and after the occurrence of an overload, which is convenient for fault analysis.

   - **Additional Protection Functions**: It has built-in modules such as under-voltage tripping (MN) and shunt tripping (MX), and supports remote control and fault signal feedback.

3. **Mechanical and Electrical Life**

   - **Mechanical Life**: 15,000 operation cycles, suitable for frequently operated scenarios (such as dual-power source switching).

   - **Electrical Life**: It can reach 3,000 times at 690V and the rated current, which is significantly higher than the industry average level.

 II. Modular Design and Accessory Expansion

1. **Installation and Connection Methods**

   - **Fixed Installation**: The front-of-panel wiring design supports the connection of copper busbars or cables. The torque requirement for the wiring terminals is 50Nm (for the 400-630A specification), ensuring the contact reliability in high-current scenarios.

   - **Optional Plug-in/Withdrawable Structure**: It is convenient for quickly replacing the circuit breaker during maintenance, reducing the power outage time.

2. **Accessory Ecosystem**

   - **Communication Module**: It supports the Modbus RTU protocol. Together with the BSCM module, it can realize the four-remote (remote measurement, remote signaling, remote control, remote adjustment) functions, suitable for the centralized monitoring of smart grids or data centers.

   - **Monitoring and Diagnosis**

     - **FDM121 Door Display Unit**: It can display parameters such as current, voltage and power factor in real time, and supports the query of historical data.

     - **SDx Fault Diagnosis Module**: It can distinguish between fault types such as overload, short circuit and under-voltage, and provides an overload pre-alarm function.

   - **Auxiliary Functions**

     - **Electrical Operating Mechanism (MN-MX)**: It supports electric closing and opening, and is suitable for automated control systems.

     - **Leakage Protection Module (Vigi)**: Optional residual current protection (30mA-1A) can meet the requirements of personal safety and equipment protection.

III. Typical Application Scenarios and Selection Suggestions

1. **Industrial Automation**

   - **Motor Control Center (MCC)**: Through the adjustable Isd function of the Micrologic trip unit, it can match motors with different starting characteristics (such as soft starting, frequency converter drive), avoiding misoperation.

   - **Distributed Energy Access**: In photovoltaic or energy storage systems, the high short-circuit breaking capacity of the NSX400F can protect the interface between the inverter and the power grid.

2. **Commercial Buildings and Data Centers**

   - **Bus Duct Power Distribution**: It supports the connection of dense busbars and realizes flexible capacity expansion with the plug-in structure.

   - **UPS Output Protection**: It can operate stably in a 400Hz high-frequency environment, meeting the strict requirements of data centers for power supply continuity.

3. **Civil and Infrastructure**

   - **High-Rise Building Power Distribution**: It has passed the 3C certification and is suitable for the fire protection power supply circuits of places such as residential buildings and hospitals.

   - **Water Treatment System**: The IP40 protection level can resist the humid environment and protect the water pumps and control systems.

 IV. Maintenance and Reliability Assurance

1. **Preventive Maintenance**

   - **Regular Inspection**: Clean the arc extinguishing chamber every 12 months and check the contact wear (the allowable wear amount ≤ 0.5mm).

   - **Tripping Characteristic Test**: Use special test equipment to verify the thermal-magnetic tripping curve to ensure the accuracy of the protection function.

   - **Accessory Function Verification**: Test the response time of modules such as shunt tripping and under-voltage tripping every year (standard value: ≤ 50ms).

2. **Fault Troubleshooting Guide**

   - **False Tripping**: It may be caused by loose wiring (need to check the torque), too high ambient temperature (need to improve heat dissipation) or improper tripping parameter setting (need to re-set).

   - **Contact Overheating**: Measure the contact resistance (normal ≤ 50μΩ). If it exceeds the standard, the contact component needs to be replaced.

3. **Life Management**

   - **Mechanical Life Counting**: Check the number of operations through the FDM121 display unit. It is recommended to replace it when it is close to 15,000 times.

   - **Electrical Life Prediction**: Monitor the thermal memory curve of the trip unit. If overload events occur frequently, the rationality of the load needs to be evaluated.

V. Differentiated Advantages Compared with Competitors

VI. Selection Precautions

1. **Current Matching**: The rated current (In) should be ≥ 1.25 times the continuous load current, and the short-circuit protection multiple (Isd) needs to be set according to the withstand capacity of the downstream cable (usually 8-12 times In).

2. **Accessory Compatibility**: Ensure that the selected accessories (such as the electrical operating mechanism and communication module) are completely compatible with the circuit breaker model (for example, the NSX400F only supports the Micrologic 2.3 trip unit).

3. **Environmental Adaptability**: When the altitude is > 2000m or the ambient temperature is > 40℃, it needs to be derated for use (the specific derating coefficient can be found in the Schneider technical manual).

Through the above analysis of technical characteristics and applications, the Schneider NSX400F, with its intelligent tripping, modular design and high reliability, has become an optimal solution for medium and low-voltage power distribution systems. Users can, according to specific scenario requirements, combine the functions of accessory expansion and intelligent communication to build an efficient and safe power protection system.
