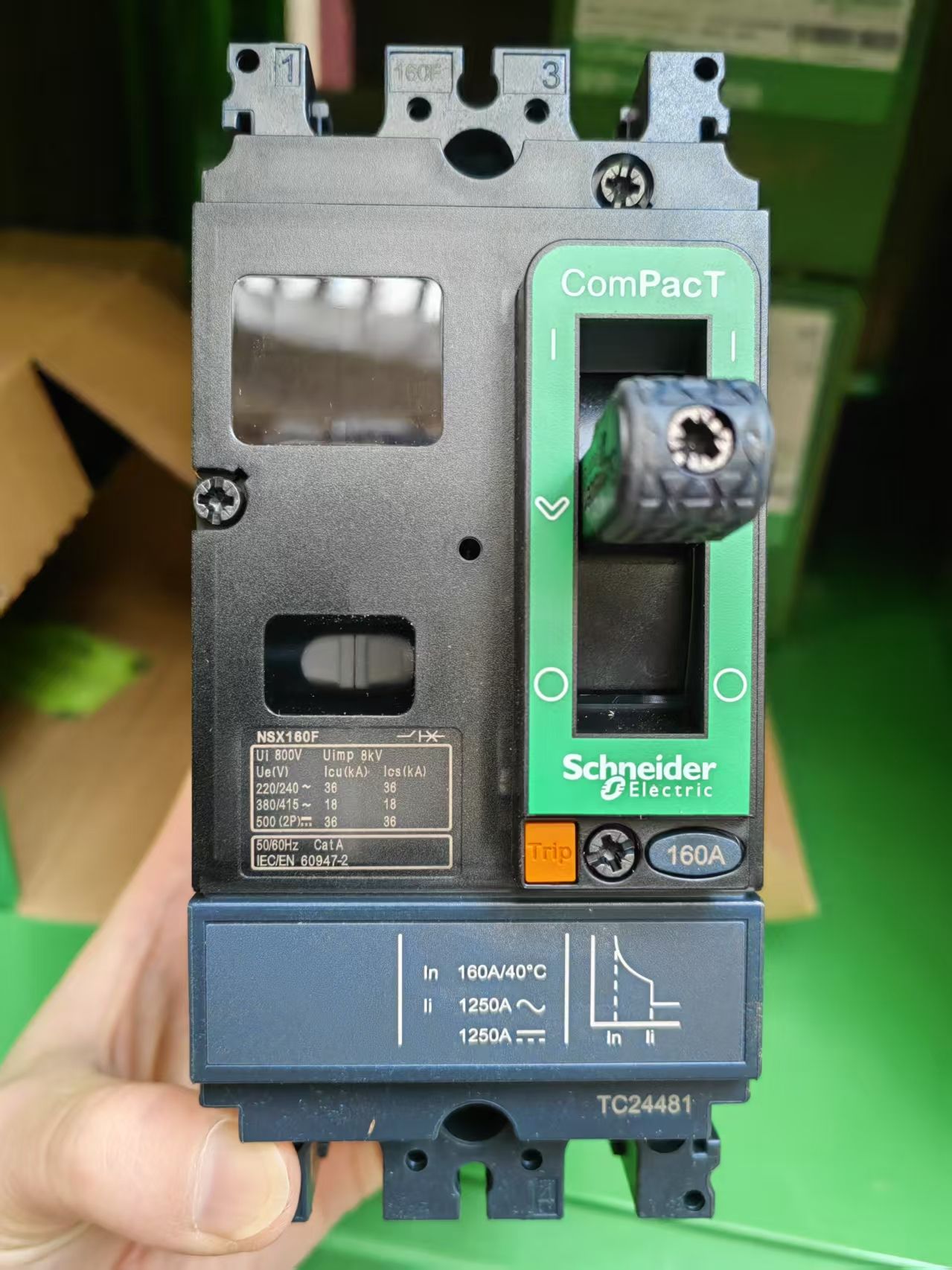

Schneider C16F2TM160 Circuit Breaker

Product description

Comprehensive Analysis of Schneider C16F2TM160 Circuit Breaker

Basic Parameters

Product Type: ComPacT NSX160F Series Molded Case Circuit Breaker (MCCB)

Frame Current: 160A (Frame Rating)

Rated Voltage: 690V AC (Operating Voltage), 415V AC (Breaking Capacity Test Voltage)

Breaking Capacity: 18kA (415V AC, 50/60Hz) Note: Different from the 36kA of 3-pole models

Pole Configuration: 2P (2 Poles) Note: Not 4 poles

Trip Unit: TMD Thermal-Magnetic Type (Thermal Overload + Magnetic Short-Circuit Protection), Rated Current 160A

Applicable System: AC/DC (Universal for Alternating Current and Direct Current)

Detailed Model Coding

C16F2TM160:

C: ComPacT Series

16: Frame Current 160A

F: Breaking Capacity Class (F=18kA, corresponding to F=36kA for 3-pole models)

2: Pole Configuration (2P)

TM: Trip Unit Type (TMD Thermal-Magnetic Type)

160: Rated Current 160A

Detailed Technical Parameters

Parameter	Value
Rated Insulation Voltage	800V AC
Electrical Life	40,000 Operating Cycles (440V AC)
Mechanical Life	100,000 Operating Cycles
Operating Temperature	-5℃ ~ +70℃ (Standard Type)
Protection Degree	IP20 (Front Side)
Mounting Method	Fixed Mounting
Compliant Standards	IEC 60947-2, IEC 60898-1

Core Features

1. Compact Design: Saves space in distribution cabinets and improves installation efficiency

2. Dual Protection: TMD thermal-magnetic trip unit provides overload and short-circuit protection

3. AC/DC Universality: Suitable for various power system environments

4. High Reliability: Robust structure with resistance to vibration and impact

5. Easy Maintenance: Front-panel operation for convenient inspection, repair and replacement

Characteristics of TMD Trip Unit

Thermal Protection: Bimetallic strip senses overload current, with inverse time-delay characteristic

Magnetic Protection: Electromagnetic coil detects short-circuit current, with instantaneous action

Fixed Protection Characteristics: Preset at the factory, no on-site adjustment required

No Communication Function: Only provides basic protection, without fault indication and remote monitoring capabilities

Application Scenarios

Commercial Buildings: Protection for single-phase 220V/240V power distribution systems such as lighting and air conditioning

Industrial Equipment: Power protection for single-phase motors and small production lines

Infrastructure: Single-phase power supply circuits in places like hospitals and schools

Residential Distribution Boxes: Branch protection for high-end residences (e.g., air conditioners, water heaters, etc.)

DC Systems: DC power protection for some industrial automation and communication equipment

Comparison with Other Models in the NSX160F Series

Model	Pole Configuration	Breaking Capacity (kA)	Trip Unit Type	Application Scenario
C16F2TM160	2P	18	TMD	Single-phase system protection
C16F3TM160	3P	36	TMD	Three-phase system protection
C16F4TM160	4P	36	TMD	Three-phase four-wire system protection
C16F42D160	4P	36	Micrologic 2.2	Systems requiring intelligent protection and communication functions

Precautions

Discontinued and Obsolete: Together with the entire NSX160F Series, production was discontinued at the end of 2022, and service support was terminated at the end of 2023

Replacement Models: It is recommended to consider the latest upgraded products of Schneider's NSX Series (e.g., NSX2 Series)

Purchasing Channels: Most products available on the market currently are stock items; please confirm the product status and quality assurance when purchasing

Summary

Schneider C16F2TM160 is a 2-pole thermal-magnetic molded case circuit breaker with a breaking capacity of 18kA, specifically designed for single-phase or DC systems, and features a compact and reliable structure.
