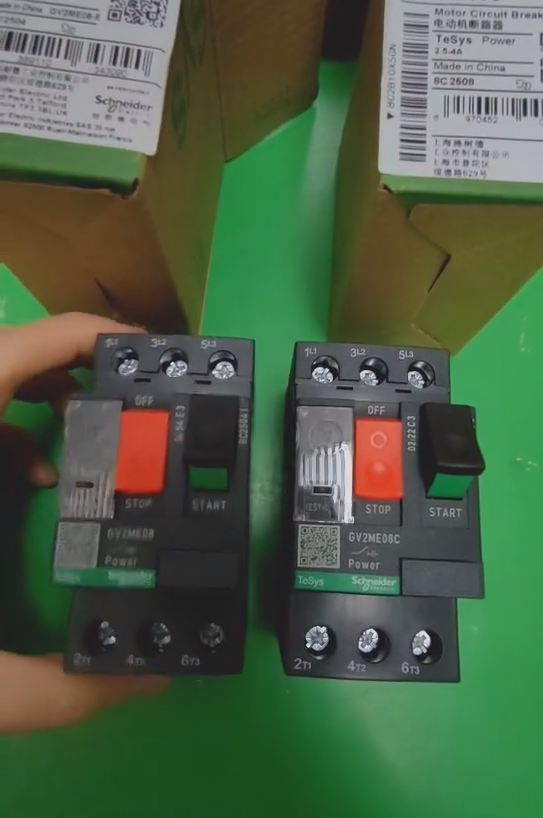

Schneider GV2ME08C motor circuit breaker

Product description

Detailed Specifications and Core Information of Schneider GV2ME08C

Schneider GV2ME08C is a TeSys GV2 series thermal-magnetic motor circuit breaker (commonly known as a "motor protection switch"). Its core function is to provide overload protection and short-circuit protection for small three-phase/single-phase motors, while also featuring manual on/off control. It is widely used in motor control circuits such as machine tools, fans, and pumps.

Item	Specific Parameters
Model Interpretation	GV2 = Series Name (Thermal-Magnetic Motor Circuit Breaker); ME = Knob Operation + Manual Reset; 08 = Frame Size; C = Trip Curve (Type C, suitable for motor-type inductive loads)
Rated Operating Current (Ie)	Adjustment range: 4 ~ 6 A (stepless adjustment via knob to match the motor's rated current)
Rated Operating Voltage (Ue)	AC-3 Category: 415 V (commonly used in three-phase motor circuits); AC-1 Category: 440 V (for resistive loads)
Rated Insulation Voltage (Ui)	690 V
Rated Short-Circuit Breaking Capacity (Icu)	15 kA at 415 V (meets short-circuit protection requirements for conventional industrial scenarios)
Protection Functions	Thermal-magnetic trip: Overload → Thermal trip (delayed action); Short circuit → Magnetic trip (instantaneous action)
Operation Method	Front-panel knob operation (on/off + current adjustment), manual reset
Installation Method	Standard DIN rail mounting (35 mm rail, industrially universal)
Auxiliary Contacts (Optional)	Requires matching auxiliary contact modules (e.g., GV2-AUX01 Normally Open, GV2-AUX02 Normally Closed); no built-in auxiliary contacts
Accessory Compatibility	Supports installation of undervoltage releases, remote control modules, etc. (must be purchased separately)
Housing Material	Engineering plastic (flame-retardant, impact-resistant)
Protection Class	IP54 (dustproof, splash-proof, suitable for cabinet installation or slightly humid environments)
Applicable Motor Power (Reference)	380 V three-phase motor: Approximately 2.2 ~ 3 kW (specifically match the actual motor current)

II. Core Features and Application Scenarios

1. Core Advantages

- Precise Protection: Adopts thermal-magnetic trip principle; overload protection can be compensated with ambient temperature, and short-circuit protection acts instantaneously to avoid motor burnout.

- Easy Operation: Directly adjust the rated current via the knob without additional tools; on/off status is intuitively visible.

- Strong Compatibility: Supports rail mounting and can be combined with Schneider TeSys series contactors and relays to form a complete motor control circuit.

- Durable and Reliable: Industrial-grade design with vibration resistance, electromagnetic interference resistance, and long service life.

2. Application Scenarios

- Protection and control of the main circuit for small three-phase asynchronous motors (e.g., fan motors, water pump motors, conveyor belt motors).

- Overload/short-circuit protection for motors in machine tools, automation equipment, and electrical control cabinets.

- Protection for single-phase motors (confirm that the motor current is within the 4~6 A range) (e.g., small compressors).

III. Selection and Usage Notes

1. Current Matching: Must adjust the circuit breaker knob to the corresponding value (within the 4~6 A range) according to the "rated operating current" on the motor nameplate; do not use beyond the specified range.

2. Load Type: Type C trip curve is specifically designed for motor-type inductive loads; it is not recommended for pure resistive loads (e.g., heating tubes).

3. Auxiliary Contacts: If remote control or fault indication is required, separately select auxiliary contact modules (e.g., GV2-AUX01 1NO, GV2-AUX02 1NC).

4. Installation Environment: With a protection class of IP54, avoid direct exposure to rain and environments with excessive dust concentration; it is recommended to install it in an electrical control cabinet.

5. Replacement and Upgrade: For a larger current range, select models in the same series such as GV2ME10C (6~10 A) or GV2ME14C (10~14 A); for intelligent protection, upgrade to the TeSys GV3 series (with digital display and communication functions).

IV. Frequently Asked Questions

- Q: Can the GV2ME08C directly replace a fuse?

A: Yes! It provides dual protection against overload and short circuits, offering superior functionality compared to a single fuse. It is reusable without the need to replace the fuse element, making it more suitable for long-term motor protection.

- Q: Does it support remote tripping?

A: No, it does not support remote tripping natively. To achieve remote control, you need to install a remote control module (e.g., GV2-ME series remote operation accessories) or cooperate with a contactor.

- Q: Can it be used for single-phase motors?

A: Yes, it can be used for single-phase motor protection as long as the motor's rated current is within the 4~6 A range and the voltage meets the requirements (AC 220V falls within the Ui 690V range).

For the complete technical manual, accessory selection table, or alternative model recommendations, refer to Schneider's official website or contact authorized distributors for accurate information.
