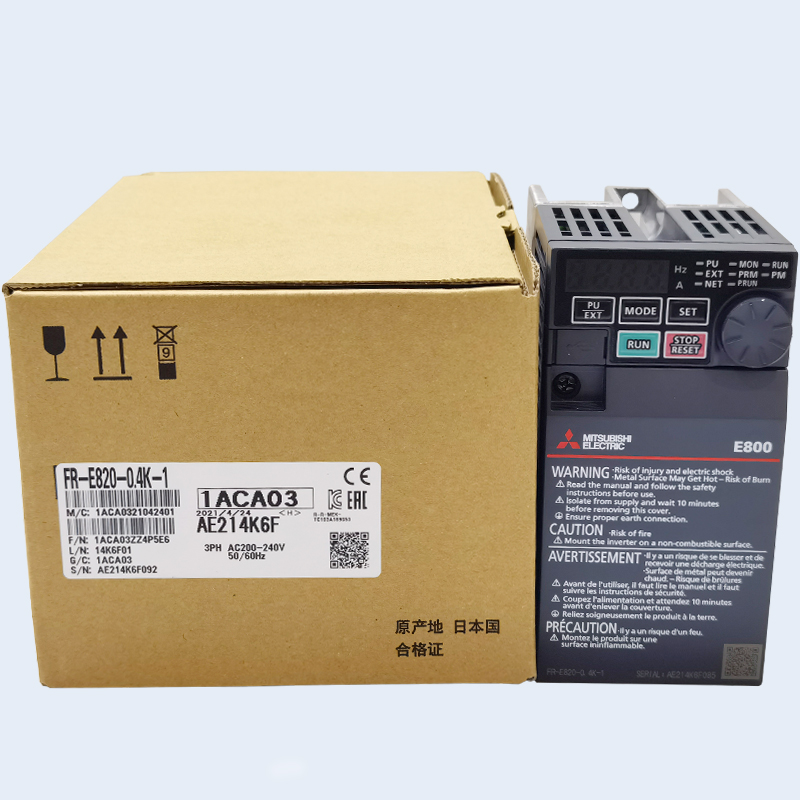

FR-E820-0.4K-1 by Mitsubishi Electric

The FR-E820-0.4K-1 by Mitsubishi Electric is a compact frequency converter designed for general industrial applications. Belonging to the FR-E800 series, it is suitable for efficient control of small motors. Below is its core information:

Technical Parameters and Functional Features

1. Basic Specifications

- **Power Rating**: 0.4kW (suitable for 0.4kW motor in ND mode, and supports 0.2kW in HD mode).

- **Input Voltage**: Three-phase 200-240V (with ±10% fluctuation range), frequency 50/60Hz, compliant with North American market standards (208-230V).

- **Output Capacity**: Rated current 3A (ND mode), overload capacity of 150% for 60 seconds and 200% for 3 seconds, supporting wide-range speed regulation (0.2-590Hz).

- **Control Modes**: Supports V/F control, advanced flux vector control, sensorless vector control, etc., flexibly adapting to different motor types.

- **Communication Interfaces**: Standard RS-485 interface supporting Modbus RTU protocol; optional Ethernet module (FR-E800-E model) enables industrial IoT connectivity.

- **Safety Functions**: Complies with SIL2/PLd functional safety standards, with built-in overcurrent, overvoltage, overheat protection, and fault diagnosis functions.  how to remove circuit breaker from panel
