Schneider LC1 series contactors

The Schneider LC1 series contactors are classic products in the field of industrial control, widely used in motor control, power distribution, and automation systems. The following is a detailed analysis of this series:

I. Product Positioning and Core Features*Chint's NB1-63DC series DC circuit breakers Price*

The LC1 series belongs to Schneider Electric's TeSys family, renowned for its high reliability and modular design. Its core advantages include:

1. **Long-life Design**: With a mechanical life of up to 20 million operations and an electrical life of 2 million operations, it is suitable for frequent operation scenarios.

2. **Wide Voltage Adaptability**: The coil control voltage ranges from 70% to 120% of the rated value, compatible with 50Hz/60Hz universal coils for global use.  Schneider Circuit Breakers Price*

3. **Harsh Environment Adaptation**: Treated with "TH" protection, it ensures stable operation in humid and hot environments, with a protection class of IP2X (preventing direct finger contact).

4. **Modular Expansion**: Supports quick installation of accessories such as auxiliary contacts, time-delay modules, and mechanical interlocks, flexibly adapting to complex control needs like star-delta starters and reversible contactors.

*II. Main Models and Technical Parameters*Schneider-MCCB-NSX250F-4P-250A*

The LC1 series includes multiple sub-series covering different current ratings and application scenarios:

- **LC1-D Series* Schneider low-voltage molded case circuit breaker *:

  - **Current Range**: 9A–620A (AC-3 category), with a maximum power of 335kW at 380V.

  - **Coil Voltage**: Supports various AC/DC voltages such as 24V, 36V, and 220V.

  - **Wiring Technology**: Models 40–65A adopt Everlink® patented terminals to ensure wiring firmness.

  - **Certifications**: CE, CCC, UL, CSA, etc. Some models are certified by classification societies (e.g., DNV, BV).

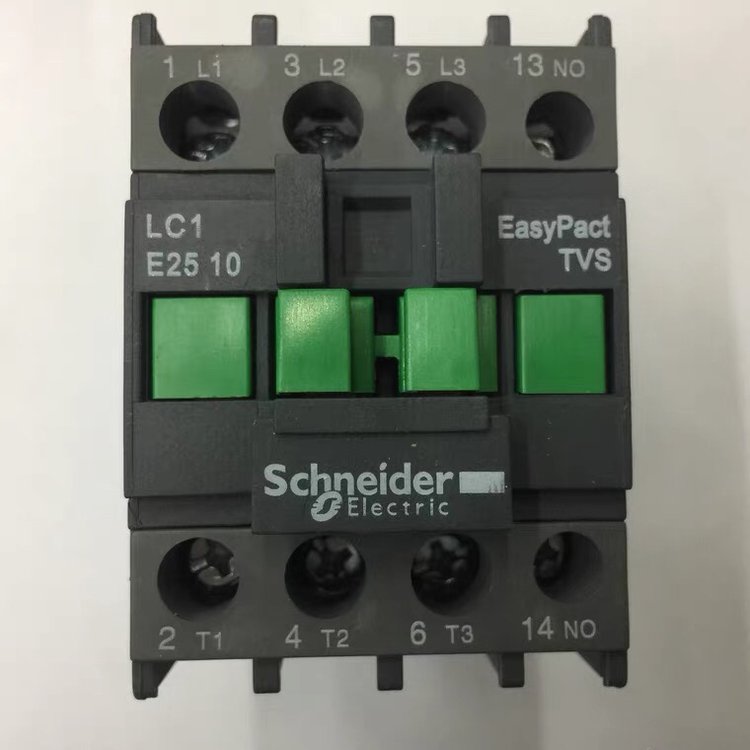

- **LC1-E Series**:

  - **Current Range**: 6A–95A (extended to 630A), suitable for small and medium-power motor control.

- **LC1-G Series**:

  - **Large-scale Models**: Such as LC1G205-KUEC (205A) and LC1G620-EHEC (620A), featuring electronic coils and self-diagnosis functions to replace the old LC1-F series.

  - **Intelligent Features**: Built-in LED diagnostic lights, supporting contact wear monitoring and over/under-voltage warnings.

III. Application Fields and Typical Scenarios**

1. **Industrial Automation**:

   - Motor control (pumps, fans, compressors).

   - Capacitor bank switching and electric heating equipment control.

2. **Infrastructure**:

   - New energy fields (wind turbines, photovoltaic inverters).

   - Port machinery and lifting equipment.

3. **Building Electrical Systems**:

   - Elevator control systems.

   - Centralized control of lighting and air conditioning systems.

*IV. Supporting Products and Selection Recommendations**

1. **Thermal Relays**:

   - Paired with LRD series thermal relays to form electromagnetic starters, providing overload protection.

2. **Auxiliary Contact Modules**:

   - LADN11C (1 NO + 1 NC), LAG8N series (expandable to up to 4 sets of contacts).

3. **Selection Key Points**:

   - **Current Matching**: Select contactors based on the motor's rated current, leaving a 20% margin under AC-3 category.

   - **Coil Voltage**: Prioritize voltages compatible with the control system (e.g., 24V output from PLC).

   - **Environmental Conditions**: Choose "TH"-protected models for humid/hot environments, and confirm certification scope for high-altitude scenarios.

*V. Upgrades and Alternative Solutions**

1. **TeSys D Series**:

   - As an upgrade to LC1-D, it offers a wider current range (9–630A) and higher breaking capacity, compatible with original accessories.

2. **TeSys Giga Series**:

   - A new generation of high-power contactors supporting predictive maintenance and quick contact replacement, replacing the LC1-F series.

3. **Compatibility Notes**:

   - LC1-D and TeSys D are compatible in installation dimensions and wiring methods, allowing direct replacement.

*VI. Installation and Certifications**

1. **Installation Methods**:

   - Standard 35mm rail mounting, supporting spring terminals, screws, or Everlink® quick wiring.

2. **Certification Coverage**:

   - Complies with standards such as IEC 60947 and GB 14048; some models are ATEX explosion-proof certified.

*VII. Price and Supply**

- **Price Range**:

  - Small models (e.g., LC1-D09M7C) cost about 370 RMB, while large models (e.g., LC1-G620) can reach thousands of RMB.

- **Supply Channels**:

  - Available for purchase through Schneider's authorized dealers via WhatsApp: 0086-13811355435.

*Conclusion**

With high reliability, modular design, and wide applicability, Schneider's LC1 series contactors are the first choice for industrial control. Users can select LC1-D (universal), LC1-E (small/medium power), or LC1-G (high-power intelligent) based on specific needs, and combine them with supporting accessories for efficient control. For upgrades, the TeSys D and Giga series offer more advanced functions and compatibility. It is recommended to refer to Schneider's official technical manuals or contact technical support (hotline: 400-810-1315) for precise solutions during selection.
