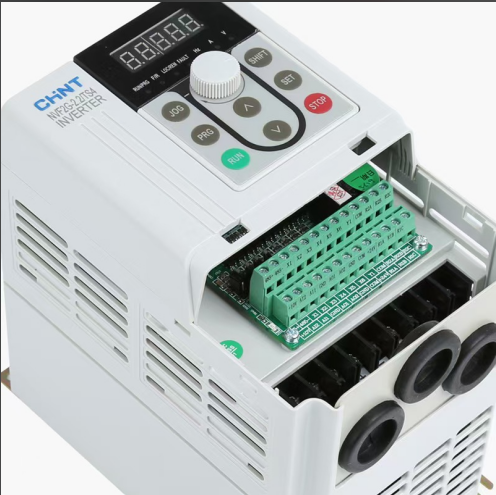

Chint converters (NVF2G-18.5/TS4 or NVF2G-18.5/PS4)

Regarding the Chint NVF2G series frequency converters (NVF2G-18.5/TS4 or NVF2G-18.5/PS4), the following is a comprehensive description combining technical parameters, application scenarios, and procurement information:

 I. Technical Parameters and Core Functions

1. **Basic Parameters*Chint AC modular socket*

   - **Power Rating**: Suitable for a motor power of 18.5kW, with a rated current of 37A (TS4 model) or 36A (PS4 model).

   - **Voltage Range**: Three-phase 380-440V (±15%), supporting wide voltage input, suitable for environments with large grid fluctuations.chneider LRD Thermal Relay Price

   - **Control Mode**: Open-loop vector control (without speed sensor), capable of outputting 1.5 times the rated torque at 0.5Hz. It has a large low-frequency torque, making it suitable for heavy-duty starting.

   - **Protection Design**: With an IP20 protection level. A top protection cover can be selected to prevent dust and foreign objects from entering. The ventilation window design can withstand water dripping at an angle of 15 degrees.

2. **Performance Advantages*Schneider Circuit Breakers price*

   - **High Reliability**: Using enhanced anti-corrosion coating and anti-aging testing, it is suitable for harsh industrial environments such as humidity and dust.CHINT surge protector price

   - **Energy-saving Features**: With built-in PID adjustment and automatic energy-saving operation function, it can reduce the energy consumption of fan and water pump loads by about 30%.CHINT circuit breaker price

   - **Flexible Configuration**: Supports the MODBUS communication protocol, enabling remote monitoring through a PLC or a host computer. The three-level user menu (basic, custom, expert) meets different operation requirements.

 II. Application Scenarios and Model Selection Suggestions

1. **Typical Applications**

   - **Industrial Machinery**: Such as conveyors, mixers, hoists, and other constant torque loads (the TS4 model is recommended).

   - **HVAC Equipment**: Fans, water pumps, air conditioning systems, and other variable torque loads (the PS4 model is recommended).

   - **New Energy Field**: Cooperating with photovoltaic inverters to achieve the speed control of motors in energy storage systems.

2. **Model Selection Considerations**

   - **Load Type**: The TS4 model is suitable for heavy loads (150% overload for 1 minute), and the PS4 model is for light loads (120% overload for 1 minute).

   - **Environmental Requirements**: If an IP54 protection level or special certifications (such as UL) are required, contact the supplier for customization.

   - **Communication Requirements**: By default, it supports MODBUS RTU. If PROFINET or CANopen is required, it should be specified when placing an order.

 III. Procurement and After-sales Service

1. **Price and Channels**

   - **Chinese Market**: The reference price of NVF2G-18.5/TS4 is approximatelyWA：0086-13811255435 yuan, and that of NVF2G-18.5/PS4 is approximatelyWA：0086-13811255435 yuan (including freight).

   - **US Market**: It needs to be purchased through Chint Power (Chint's North American branch) or authorized distributors (such as Axion Industries). The price is approximately $800-$1200, with additional customs duties and freight to be paid.

   - **Bulk Purchase Discount**: For purchases of more than 10 units, contact Chint's sales department to apply for a discount. For large projects, EPC general contracting services can be provided.

2. **Certifications and Compliance**

   - **UL Certification**: Chint's power products have passed the UL certification, but the NVF2G series needs to be confirmed separately. It is recommended to query the certificate number through the UL official website (the product serial number needs to be provided).

   - **Energy Efficiency Standards**: It complies with the energy efficiency requirements of the US Department of Energy (DOE), and some models can apply for local energy-saving subsidies.

3. **After-sales Service**

   - **Warranty Policy**: A 2-year warranty is provided in the Chinese mainland, and the policy in the US market needs to refer to the local dealer's policy (usually 1-2 years).

   - **Technical Support**: You can contact Chint's global customer service hotline: Whatsapp: 0086-13811255435, or submit technical consultations through the official website.

   - **Maintenance Service**: US customers can contact Chint's North American technical center (located in California) for fault diagnosis and spare parts replacement.

 IV. Operation and Maintenance Suggestions

1. **Installation Key Points**

   - **Ambient Temperature**: -10°C to +40°C (without derating), and forced air cooling is required when it exceeds 40°C.

   - **Wiring Specifications**: Shielded wires should be used for input and output cables, and the grounding resistance should be ≤10Ω.

   - **Harmonic Governance**: It is recommended to install an input reactor (optional) to reduce interference with the power grid.

2. **Maintenance Cycle**

   - **Daily Inspection**: Clean the dust on the radiator every month and check whether the wiring terminals are loose.

   - **Regular Maintenance**: Replace the cooling fan every six months and detect the capacity of the electrolytic capacitor every year.

   - **Fault Handling**: Common fault codes (such as OC overcurrent, OV overvoltage) can be troubleshot through the user manual, and serious problems need to be returned to the factory for repair.

VI. Contact and Procurement Guidelines

1. **Direct Consultation**

   - **hebei china Electric  Whatsapp: 0086-13811255435 (Chinese account manager, please note "NVF2G-18.5 price inquiry").**

   - **Email**: sales000888@gmail.com (International Business Department), and the company name, purchase quantity, and application scenario need to be provided.

2. **Official Channels**

   - **US Official Website**: www.transformerandswitchgear.com).

3. **Authorized Dealers**

   hebei china Electric  Whatsapp: 0086-13811255435

What are the detailed technical parameters of the Chint NCF2G/18.5 frequency converter?

The detailed technical parameters and application instructions of the Chint **NVF2G-18.5** frequency converter (there may be a model typo, and the actual model should be **NVF2G-18.5/TS4** or **NVF2G-18.5/PS4**) are as follows:

I. Core Technical Parameters

1. **Basic Performance Parameters**

 2. **Extended Function Parameters**

- **Protection Level**: IP20 (a top protection cover can be optionally equipped to resist water dripping at an angle of 15°).

- **Ambient Temperature**: -10°C to +45°C (derating is required when it exceeds 45°C).

- **Installation Altitude**: ≤1000m (derate by 10% for every 1000m increase, up to 3000m).

- **Communication Interface**: RS485 (Modbus RTU protocol) is standard, supporting remote monitoring.

- **Energy-saving Features**: With built-in PID adjustment and automatic energy-saving operation, the energy-saving rate for fan and water pump loads is about 30%.

II. Model Differences and Model Selection Suggestions

1. **Core Differences between TS4 and PS4**

- **TS4 (General Purpose)**: Suitable for constant torque loads such as conveyors and mixers, supporting 150% overload, and a braking unit is built-in (for 1.5-30kW models).

- **PS4 (Fan and Water Pump Type)**: Aimed at variable torque loads such as fans and water pumps, with a light load design (120% overload), and a braking unit is standard (for 1.5-45kW models).

 2. **Adaptability to the North American Market**

- **Voltage Compatibility**: The standard model supports 380-440V, and a 460V model (such as NVF2G-18.5/TS4-460V) needs to be customized for the North American region.

- **Certification Information**: It has passed the UL certification (the specific certificate needs to be queried by providing the product serial number) and complies with the energy efficiency standards of the US DOE.

III. Physical Parameters and Installation Requirements

 1. **Dimensions**

- **Width × Height × Depth**: 250mm × 400mm × 180mm (TS4 model); 230mm × 370mm × 160mm (PS4 model).

- **Weight**: Approximately 8.5kg (TS4); 7.8kg (PS4).

 2. **Installation Specifications**

- **Wiring Requirements**: Shielded wires should be used for input and output cables, and the grounding resistance should be ≤10Ω.

- **Heat Dissipation Design**: Cooled by an axial DC fan. It is recommended to install it vertically, and reserve a heat dissipation space of ≥100mm around it.

 IV. Procurement and After-sales Service

 1. **Price and Channels**

- **Chinese Market**: NVF2G-18.5/TS4 is approximately WA：0086-13811255435 yuan, and NVF2G-18.5/PS4 is approximately WA：0086-13811255435yuan (including freight).

- **US Market**: Purchased through Chint Power (Chint's North American branch) or authorized dealers (such as Axion Industries), with a price of approximately $800-$1200, and additional customs duties and freight need to be paid.

- **Bulk Purchase Discount**: A discount can be applied for purchases of more than 10 units, and EPC general contracting services are provided for large projects.

2. **Technical Support**

- **Warranty Policy**: 2 years in the Chinese mainland, and 1-2 years in the US market (the dealer's policy needs to be confirmed).

- **Technical Documents**: The user manual can be downloaded from [Chint's official website] www.transformerandswitchgear.com, or contact the customer service to obtain English version materials.

- **Maintenance Service**: US customers can contact Chint's North American technical center (in California) for fault diagnosis and spare parts replacement.

 V. Typical Application Scenarios

1. **Industrial Machinery**

   - Heavy-duty starting scenarios such as plastic extruders, textile machinery, and mining equipment (the TS4 model is recommended).

2. **HVAC**

   - Chilled water pumps of central air conditioners, cooling tower fans, air handling units (the PS4 model is recommended).

3. **New Energy Field**

   - Cooperating with photovoltaic inverters to achieve the speed control of motors in energy storage systems.

VI. Comparison with Competitors

VII. Contact and Procurement Guidelines

1. **Direct Consultation**

   - **hebei china Electric  Whatsapp: 0086-13811255435 (Chinese account manager, please note "NVF2G-18.5 price inquiry").**

   - **Email**: sales000888@gmail.com (International Business Department), and the company name, purchase quantity, and application scenario need to be provided.

2. **Channels**

   - **Chinese Official Website**: hebei china Electric  Whatsapp: 0086-13811255435

   - **US Official Website**: hebei china Electric  Whatsapp: 0086-13811255435

3. **Authorized Dealers**

   hebei china Electric  Whatsapp: 0086-13811255435
